Mach3 USB interface NVUM-SK cnc motion controller nvcm 4 axis cnc motion control card metal case does not heat

product content:

Control card*1

USB cable*1

CD*1

Product introduction:

NVUM_SKv1.1 support Mach3 software . through USB to communicate with

computer.

NVUM_SKv1.1 motion controller adopts the ARM design framework. The ARM

design includes communication,codeanalytic,underlying algorithm and pulse gerneration. Rational design, reliablecontrol, convenient operation.

Products specification:

Support USB;

8 ports photoelectric isolated input interface for ordinary digital data；

3 ports photoelectric isolated output interface for ordinary digital data；

 1 port 0-10V spindle speed analog output interface(can change to PWM output)；

 can support 4 axis stepper systems,100KHz pulse output for every axis；

ARM motion control chip；

 Products Appearance and size:

NVUM_SKv1.1 motion controller is with simple structure, there are 4pcs setting holes at the bottom. We can fix 4pcs 4mm diameter holes at the cabinet, and install the controller into the cabinet.

The controller appearance as the Figure 1-1 and Figure 1-2 show:

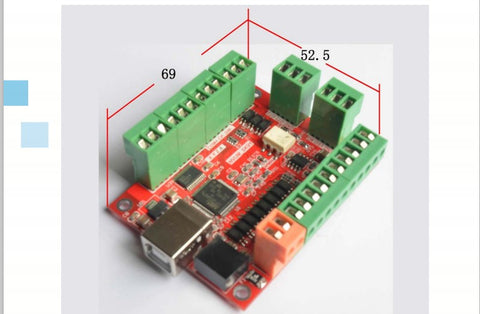

The products overall size is 69mm*52.5mm；

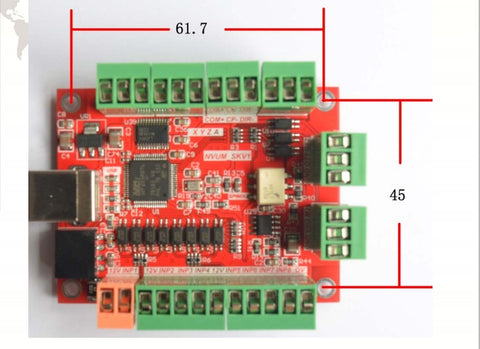

The bottom install size is 61.7mm*45mm

Product connection define and method:

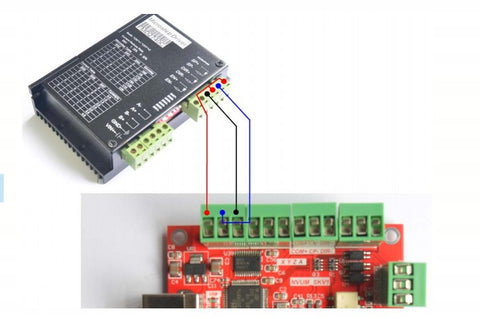

1. Stepper motor control interface

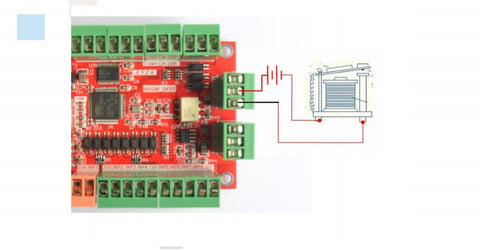

2. Common IO output interface

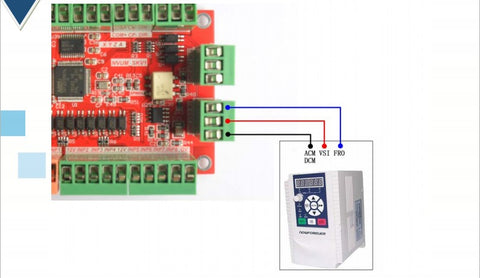

3. Spindle control output

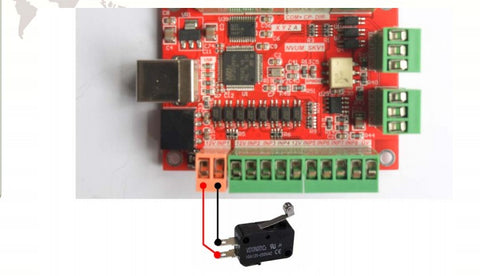

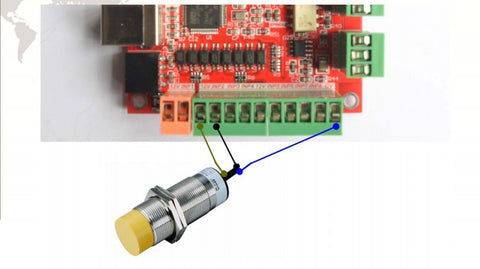

4. Estop limited Tool setting input interface
5. USB Port
